aCOLyte 3 HD - Automated colony counting

//aCOLyte 3 HD

aCOLyte 3 HD

aCOLyte 3 HD is the latest affordable automated colony counting device, featuring new simple to use software that greatly improves efficiency, reliability and productivity.

Category: Industries: Environment & Water, Food & Drink, Veterinary
Register to download brochure
WHERE TO BUY
GO BACK
Colony counting Spiral Plates 3 Year warranty Camera ISO 9001:2008 Operating System TIFF USB XLS

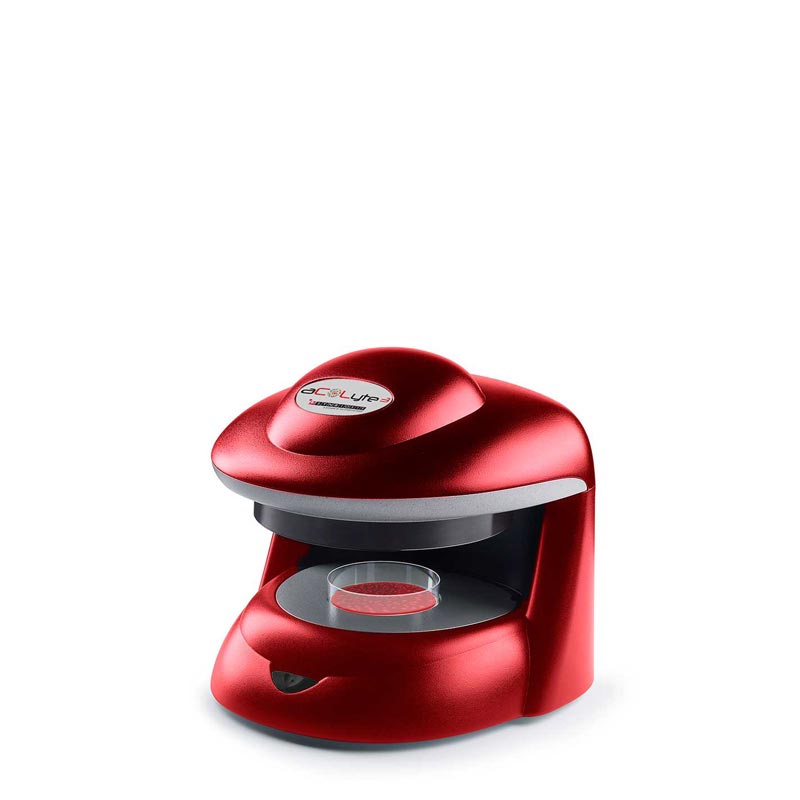

aCOLyte 3 HD is the latest affordable, automated colony counting device from Synbiosis. The aCOLyte 3 HD is available in one configuration and features new simple-to-use software that greatly improves efficiency, reliability and productivity over previous models.

The new aCOLyte 3 HD software uses a powerful new algorithm for colony counting on pour and spiral plates which until now were only found on the advanced ProtoCOL 3 models. Plates are automatically counted with results directly transferred to Excel or Open office.

The new style aCOLyte 3 HD accepts plates up to 90mm diameter. Lighting is provided by LEDs mounted above and below the sample area for both transmitted and epi illumination. A detachable screen can be used to eliminate strong ambient light if required.

aCOLyte 3 HD can be used with any conforming laptop or desktop PC and connects simply by using a USB port.



Why buy?

  • Low Cost
    aCOLyte 3 HD is a low cost entry into electronic colony counting. Results and plate images are saved to a PC enabling traceability, consistency and report generation in Excel.
  • Automated
    With the aCOLyte 3 HD plates can be counted rapidly. Typically plates can be counted accurately in under 1 second.
  • Image display
    Unlike any manual system the aCOLyte 3 HD displays the image on your computer screen with counted colonies clearly marked. The zoom function allows the user to closely view plates, confirming accurate counting.
  • Powerful algorithm
    The aCOLyte 3 HD uses the powerful Synbiosis algorithm for accurate counting. A colony separator automatically splits touching colonies to further improve the accuracy of the counting process.
  • Sensitive CCD camera
    An integral CCD colour camera can be adjusted to increase the sensitivity of the detection, enabling colonies as small as 0.1mm to be imaged and counted.
  • Switchable lighting
    The LED lighting can be switched from upper to lower options, enabling counting on both light and dark media.
  • Database
    MS SQL Server Express database automatically stores all data.



Specification

Feature
PC connection USB
Resolution For standard 90mm petri dishes, smallest detectable colony better than 0.1mm
Illumination Long-life upper and lower LED arrays with darkfield and brightfield
Power input 110/240v
Minimum PC specification Processor: Intel Core 2 or Core i processor 2.13 GHz or better

2Gb RAM, 4Gb recommended

CD-Rom drive (required for software installation)

2 free independent USB 2.0 ports, at least one of which supports hi-speed mode. Note that there are three possible port speeds with USB 2.0: Lo-speed (1.5Mbps), full-speed (12Mbps) and hi-speed (up to 480Mbps). The aCOLyte camera requires a hi-speed port
Graphics: Intel X4500 or better (Windows 7 Experience rating for graphics should be a minimum of 3.0, ideally higher)
Hard drive: 160GB (or larger)

Operating system: Windows 7/10 compatible
(Home versions not suitable, Windows Vista not supported)
Monitor: 1280 x 1024 minimum resolution (not comptabile with lower resolutions as some elements of the application become inaccessible)
Note: the combination of the minimum display resolution and the USB ports will preclude most laptops

Applications

aCOLyte 3 HD can be used for total viable counts in many environmental, food monitoring, pharmaceutical, clinical, and molecular biology applications.

Examples would include:

  • E.coli, Enterococcus faecalis, Salmonella spp, and mixed organisms on plate count or nutrient agar.
  • Staphylococcus aureus, and mixed organisms on plate count agar, columbia blood agar, or nutrient agar.
  • E.coli on LB medium, and yeast on potato dextrose agar.
